Beschreibung

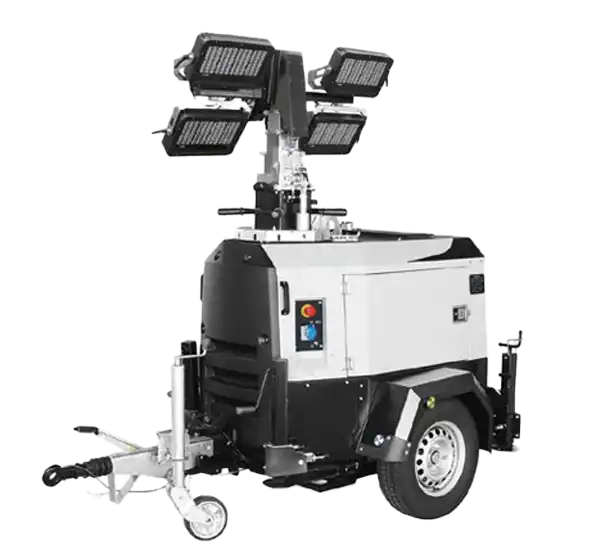

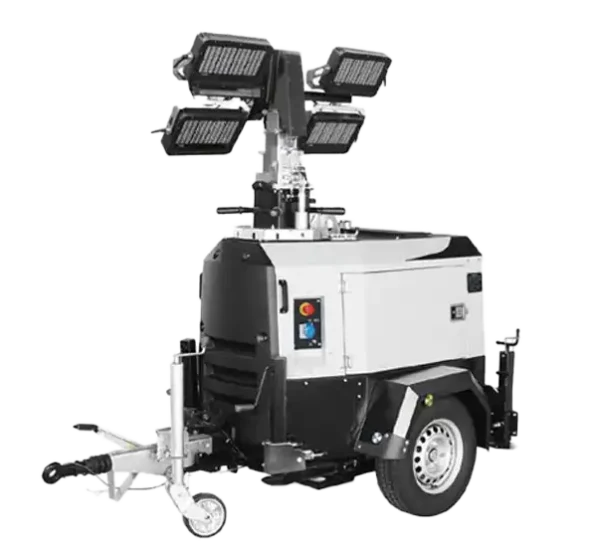

Features
- Multi-directionally adjustable and tiltable floodlights
- 4x320W, 48V LED lights
- 48V power between the generator and the lights
- 7 sections hydraulic vertical tower 8,5 m, 340° rotatable
- Galvanized metalworks
- 80 μm powder coating
- Very compact dimensions, up to 14 units per truck
- Central lifting eye, longitudinal and transversal forklift pockets for effective handling
- Plug & play, colour coded cables and connectors
- Guided main coiled cable to avoid damage during tower operation
- Digital control panel and fuel level indicator
- Circuit breaker for electrical protection against overload
- External emergency stop button
- Fully bunded tank, 110%
- Certified wind stability up tp 110 km/h
- 4 height adjustable stabilizers
- On board levels for guidance during stabilization
- Amoss safety break
Technische Merkmale
| Abmessungen & Gewicht | |
| Mindestabmessungen (mm) | 2540x1390x2420 (LxBxH) |
| Maximalabmessungen (mm) | 2540x1550x8500 (LxBxH) |
| Gesamtgewicht (kg) | 932 |
| Flutlichtanlage | |
| Typ | LED |
| Leistung (jeweils) | 320W |
| Anzahl der Flutlichtstrahler | 4 |
| Optionen | Timer |
| Beleuchtete Fläche (m²) | 9300 |
| Mast | |
| Hubsystem | Hydraulisch |
| Maximale Höhe | 8,5 m |
| Drehung | 340° |
| Maximale Windgeschwindigkeit | 110 km/h |
| Lichtmaschine | |
| Modell | Synchron |
| Frequenz (Hz) | 50 |
| Isolationsklasse | H |
| Schutzart | IP 23 |
| Einphasen-Spannung | 3,5 kVA – 230V |
| Hilfssteckdosen | 1 kVA |
| Motor | |
| Modell | Kubota Z482* |
| Kraftstoff | Diesel |
| U/min | 1500 |
| Tankinhalt (l) | 110 |
| Verbrauch (l/h) | 0,55 |
| Betriebsdauer | 200 h |
| Geräuschpegel dB(A) in 7 m | 65 |
