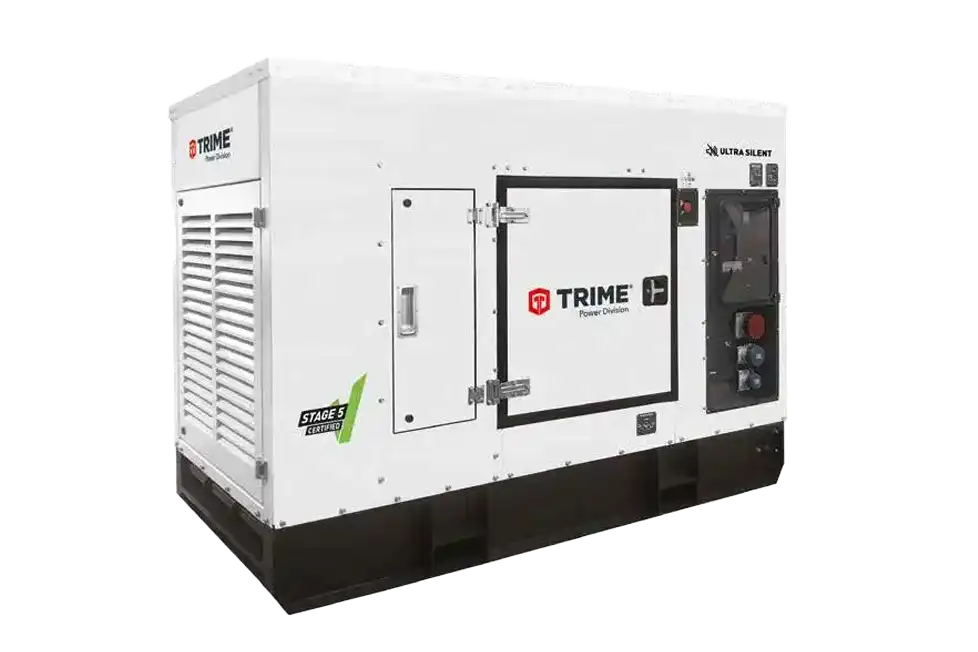

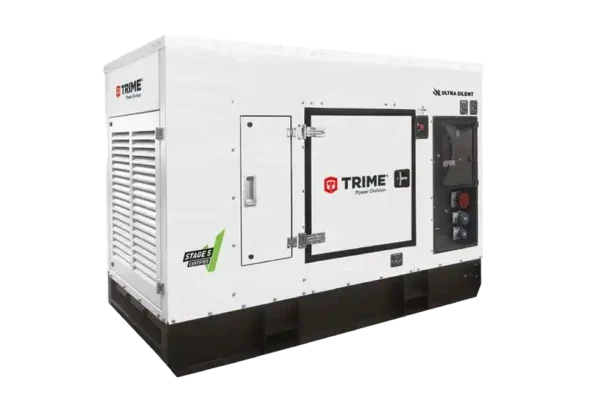

100kVA Diesel Stromerzeuger TPGR100TK5

Preis auf Anfrage

Kategorien: , , , Artikelnummer: TPGR100TK5

Beschreibung

ULTRA SILENCED version, galvanized and powder-painted canopy,
compact base frame, with bunded tank and leak control

  • Autostart logic panel DSE 7310 for Manual version
  • 4-poles magnetothermic switch
  • Adjustable ELCB circuit breaker
  • Power terminal block protection microswitch
  • Oil extraction pump
  • Battery disconnect switch
  • Mechanical fuel level gauge on tank
  • 3-way valve for diesel circuit from ext. tank (quick
  • couplings excluded)
  • Side rubber bumper protection
  • Water / Diesel separator filter
  • AdBlue, urea tank included
  • Central lifting hook
  • Doors closing by compression
  • Radiator in separate compartment
  • Heavy duty air filter
  • Liquid collection tank with alarm
  • Tank inspection flange
  • Reinforced chassis for Rental use
  • Alternator with butadiene protection System 2 Leroy Somer or Total Plus MeccAlte

Zusätzliche Informationen

Leistung (kVA)

100

Stromerzeuger

Leistung max. (kVA)110
Dauerleistung (kVA)100
kVA100
Maße (L x B x H)2600 x 1130 x1800
Gewicht inkl. Öl (+ Kühlmittel wenn wassergekühlt), und Kraftstoff (in kg)2080

Motor

Handelsmarke / TypKOHLER KDI3404TCR SCR
Hubraum (in cm³)3359
Verbrauch (bei 75%-100% Belastung)18,8 - 24,8 l/h
Tankinhalt (in L)300
SchallpegelAcoustic pressure level 7m (dBA)
EU EmissionsnormStageV
Batterie Spannung12V

Generator

Handelsmarke / TypLeroy-Somer LSA44.3S5
Nennspannung400/230V
Frequenz (in Hz)50
SchutzartIP23

Datenblatt 100kVA Diesel Stromerzeuger TPGR100TK5

DatenblattDatenblatt ansehen
